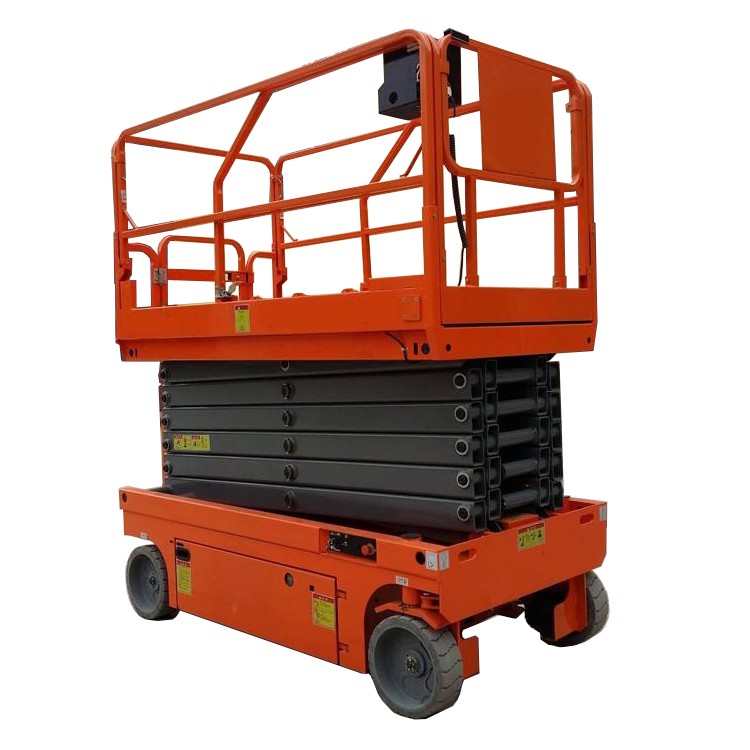

Electric Scissor Lift Advantages
Explosion-proof system explosion-proof electronic control system
No noise,zero emission,suitable for high environmental requirements
Portable driver box operator single handle, can operate the direction of travel and lifting
Theupper and lower control modules are more convenient to operate and are safe
Strong support of good quality, no deformation
Guardrail high strength guardrail, safer operation
The emergency descent system fails to operate. This device ensures that the operator can reach the ground safely
The front urning radius is smaller, operating in a narrow space

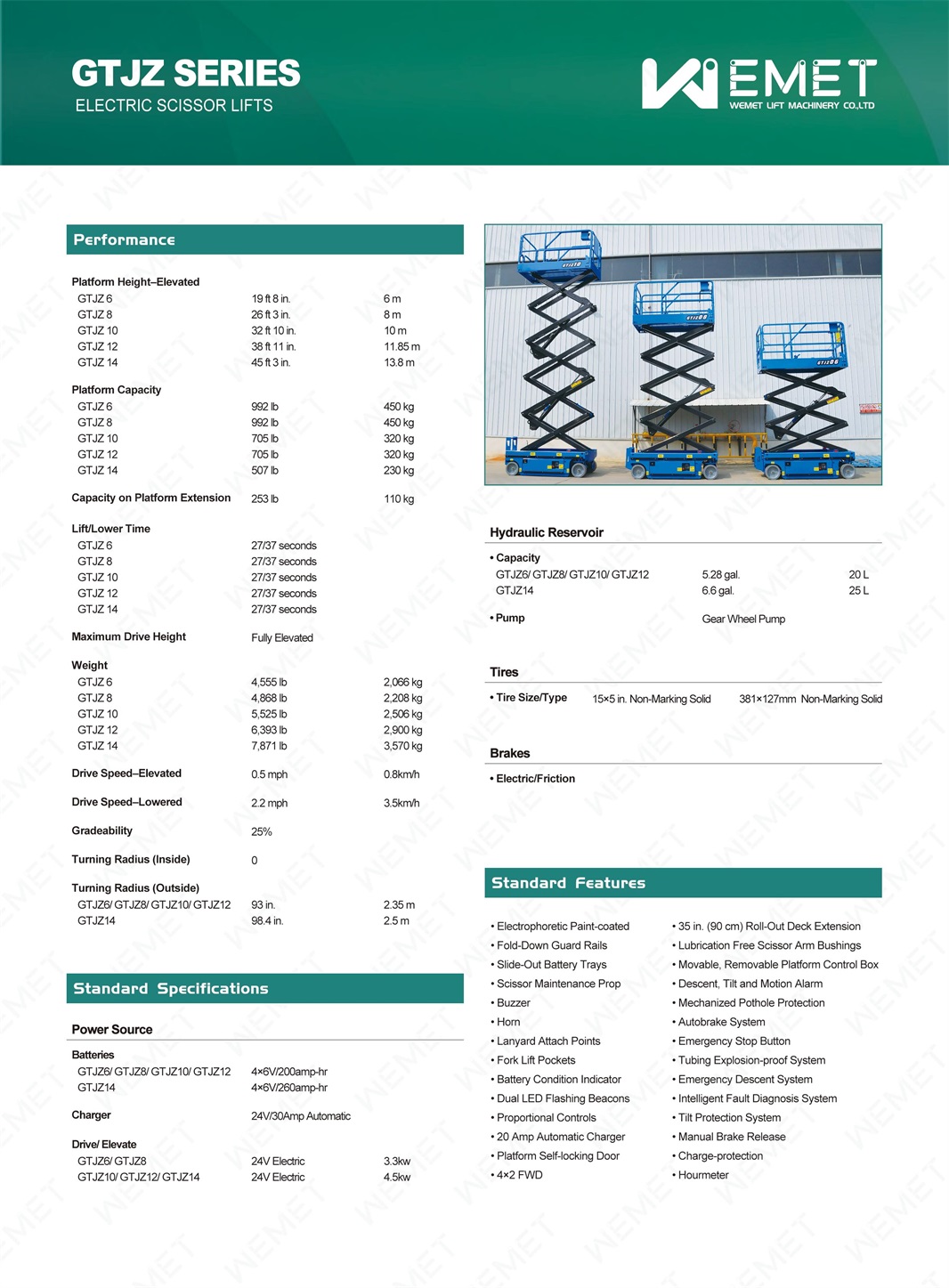

Electric scissor lift paramemers
| Model | GTJZ06 |
| Machine Weight | 2066kg |
| Drive Speed elevated | 0.8km/h |
| Drive speed lowered | 3.5kw/h |
| Max Number of workers | 2 |
Max.working height | 8 m |
| Platform size(length * width) | 2.25m*1.13m |
| Platform extension size | 0.9m |
| Load Capacity | 450kg |
Load capacity of extended platform | 110kg |
| Minimum ground clearance | 0.02m |
| lifting motor | 24V /3.3KW |
| Machine running speed(stowed) | 2.4 KM / h |
| Rising/descending speed | 35/30sec |
| Batteries | 4*6V/300AH |
| Charger | 24 V / 30A |
| Gradeability | 25% |
| Max. working slope | 1.5°/ 3 ° |
| Hydraulic Oil Tank | 20L |
Scissor Lift Standard Equipment
●Electrophoretic Paint-coated ●Fold-Down Guard Rails ●Slide-Out Battery Trays ●Scissor Maintenance Prop ●Lanyard Attach Points
●Fork Lift Pockets ●Battery Condition Indicator ●Dual LED Flashing Beacons ●20 Amp Automatic Charger ●Proportional control ●4*2FWD
●35 in.(90 cm) Roll-Out Deck Extension ●Movable, Removable Platform Control Box ●Descent, Tilt and Motion Alarm ●Mechanized Pothole Protection

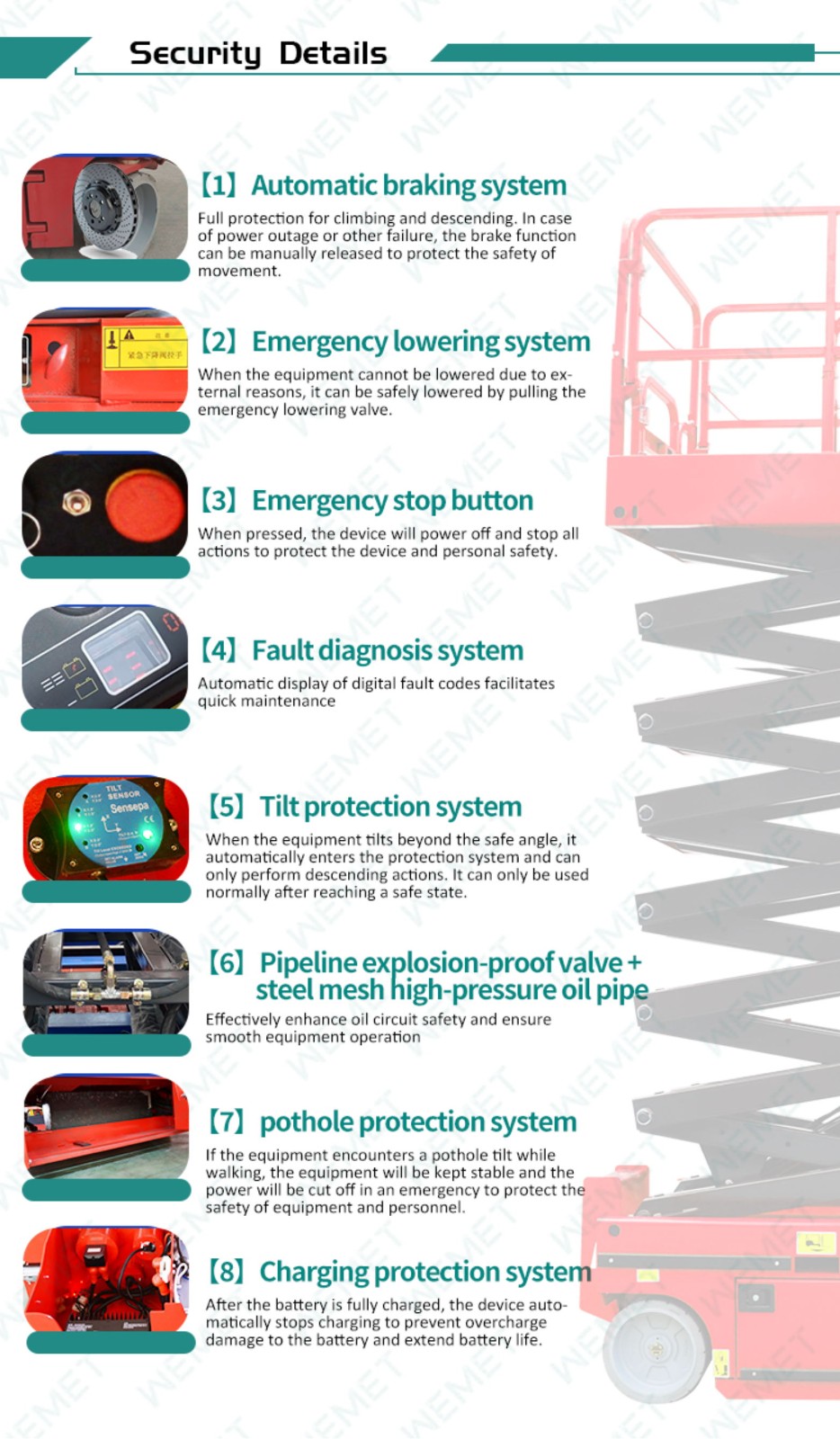

● Automatic brake system ●Emergency descent system ●Emergency stop button ●Tubing explosion-proof system ●Intelligent Fault Diagnosis System
●Fault diagnosis system ●Tilt protection system ●Manual Brake Release ●Buzzer ●Horn ●Standard forklift slot ●Charging protection system
Main Parts of Electric Scissor Lift
