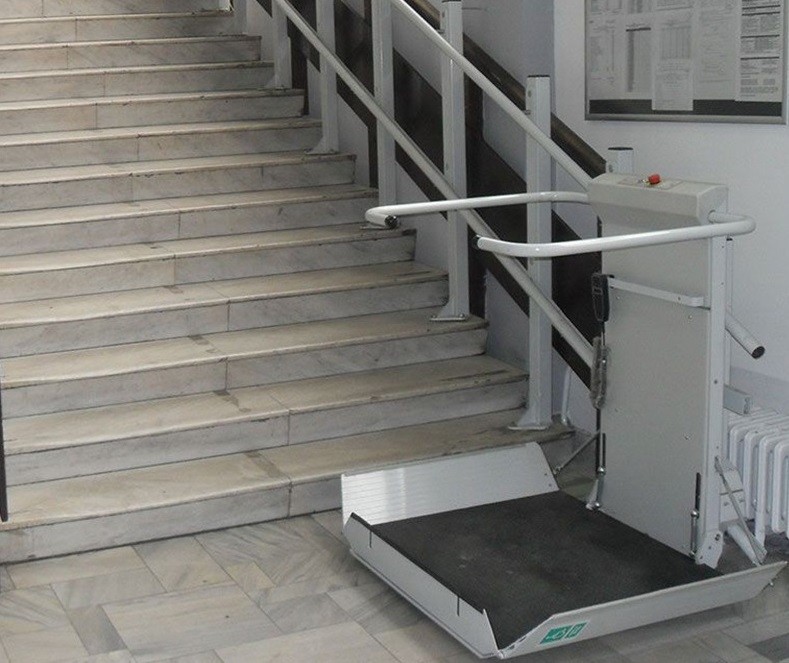

.jpg "Inclined Wheelchair Lift")
.jpg "Inclined Wheelchair Lift")

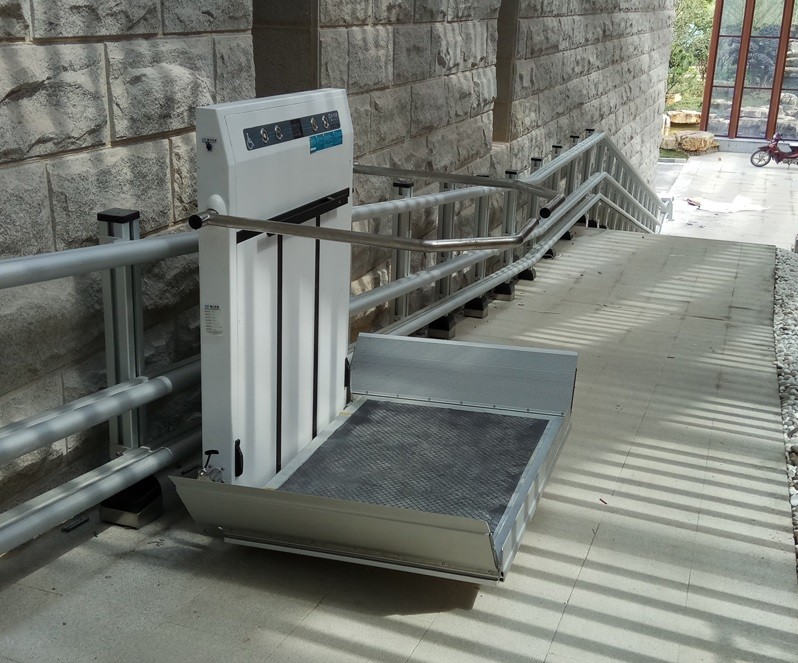

.jpg "Inclined Wheelchair Lift")
| GH Series | |
| Use | Provides the service of up and down stairs for wheelchair users |
| load Capacity | 250kg |
| Self-Weight | ≈45kg |
| Platform Size | 1118mm(L)*800mm(W) |
| Control Cabinet Size | 500mm(L)*323mm(W)*553mm(H) |
| Safety Ramp Size | 885mm(L)*260mm(W) |
| Guardrail Height | 945mm |
| Motor Power | 1.5kw |
| Power Input | 220V/50HZ/25AH(or customized for local power supply) |
| Battery Capacity | 24V10AH |
| Drive System | Hydraulic |
| Running Speed | 0.06-0.15m/s |
| Control Mode | Jogging control or automatic |
Custom Design
Advantages
Fully automatic folding system
No human intervention is required for any deformation operation.
Anti-collision function
Guardrail can automatically detect displacement and suspend equipment operation to ensure passenger safety.
The battery is supplied with power
To ensure that the device can be folded without external power.
With emergency stop button
The device immediately brakes after pressing the emergency stop button in the running state.
Aluminum alloy countertops
Automatic flaps, light and beautiful rust.
Chain drive mode
Can adapt to any arc installation scenario

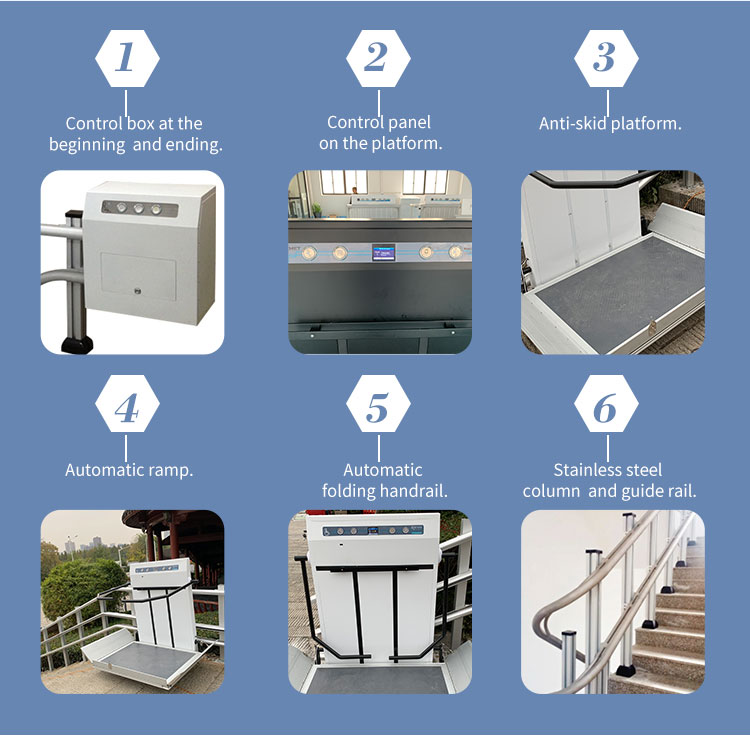

Product Details
