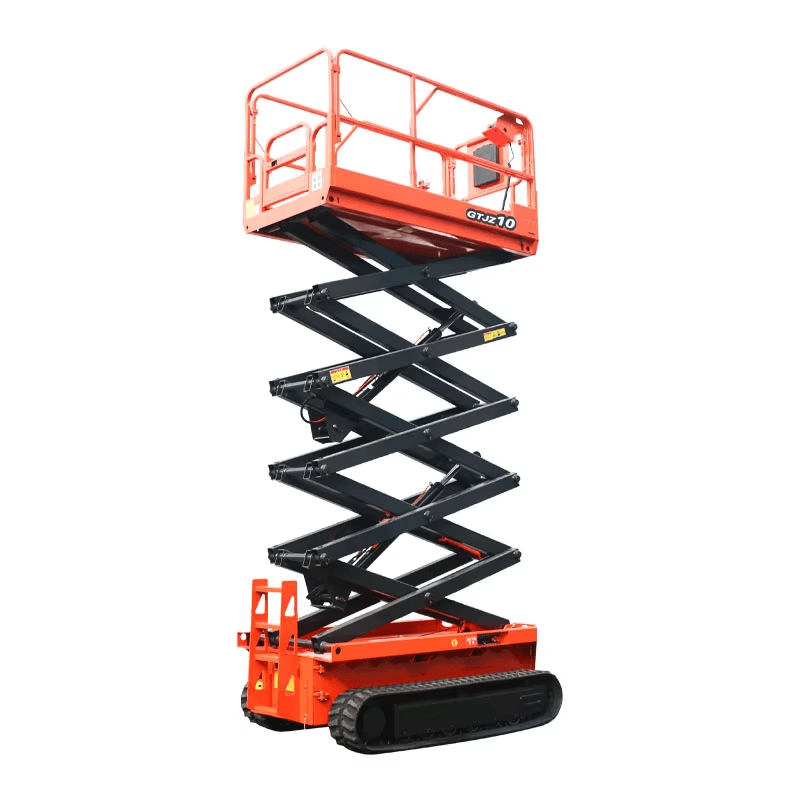

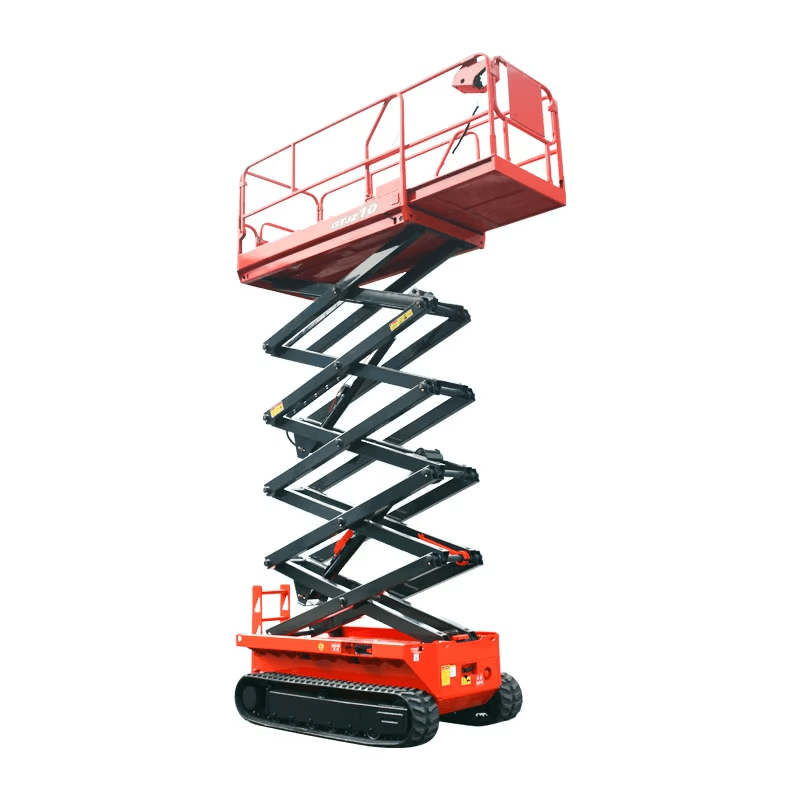

Crawler scissor lift design allows flexible operation in complex terrain such as uneven terrain and areas that are difficult to access with traditional machinery. 360° steering, electronic drive system, easy to operate, high efficiency, environmental protection, energy saving.
1. Safety brackets Q345 Rectangular tube made of manganese steel with high strength and strong structure.
2. Industrial track Industrial crawler, good air tightness, high elasticity, tear resistance, cols resistance and wear resistance
3.Extensible working platform Retractable table, increase the scope of work.
3. Hydraulic power system Precision grinding of the hydraulic cylinder, imported seals, built-in explosion-poor valve, durable and non-leakage.
4. Easy Maintenance Imported battery, durable use, placed in front of the body, more convenient maintenance.
5. Platform control DTC control system, more sensitive.
6. Electric/AC ·When the workplace is energized, it is usually used indoors ·No noise and air pollution.
|
pecification
|
PT1416LDS
|
PT1214LDS
|
PT1012LDS
|
PT0810LDS
|
PT0608LDS
|
|
Load Capacity
|
230Kg
|
320Kg
|
320Kg
|
450Kg
|
450Kg
|
|
Max. Working Height
|
15.75m
|
14m
|
12m
|
10m
|
8m
|
|
Lifting Motor
|
48V/5Kw
|
48V/4Kw
|
48V/4Kw
|
48V/4Kw
|
48V/4Kw
|
|
Travel Speed(Stowed)
|
2.4Km/h
|
2Km/h
|
2Km/h
|
2Km/h
|
2Km/h
|
|
Battery
|
8X6V/240Ah
|
8X6V/200Ah
|
8X6V/200Ah
|
8X6V/200Ah
|
8X6V/200Ah
|
|
Gradeability
|
30%
|
30%
|
30%
|
30%
|
30%
|
|
Overall Weight
|
4700kg
|
3590Kg
|
3430kg
|
3270Kg
|
2970kg
|
