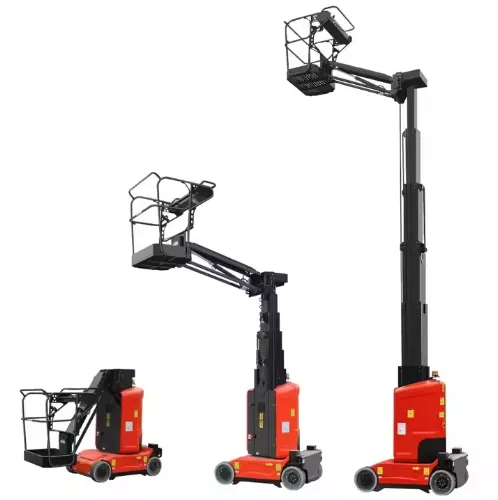

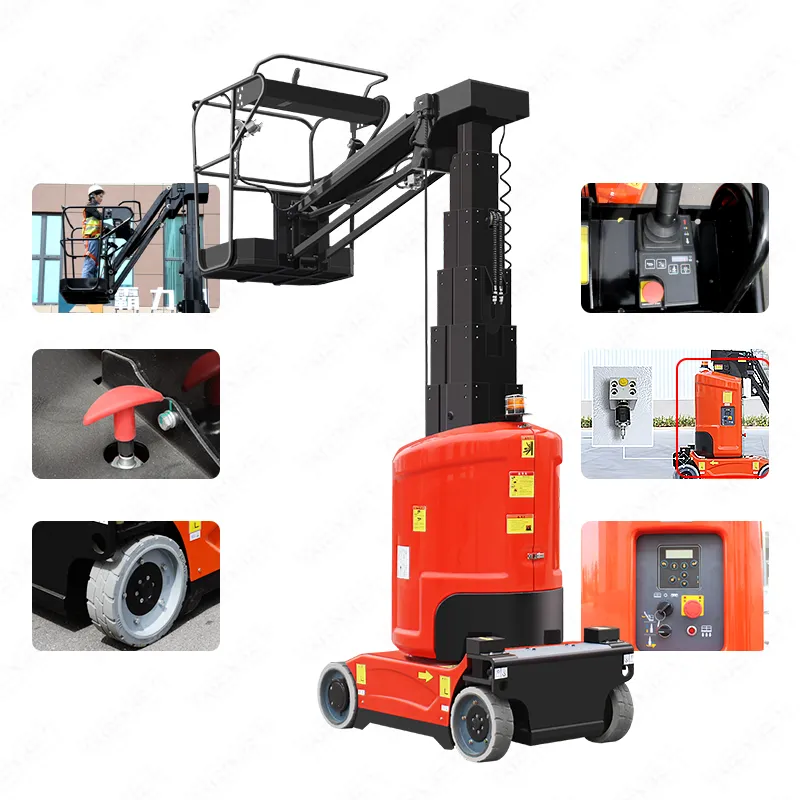

The vertical telescopic mast with a secondary arm is essentially a vertical tower-like structure that can be extended or retracted to different heights according to the specific requirements of the project. This scalability function is convenient for transportation and deployment, making it an ideal solution for mobile operations. On the other hand, a cantilever is an arm-shaped extension that can be rotated and manipulated to precisely and easily reach hard-to-reach areas.
| Specification | Value |
| Model | AMW11.2-8100 |
| Max. Working Height (H1) (m) | 11.2 |
| Max. Platform Height (H2) (m) | 9.2 |
| Loading Capacity (kg) | 200 |
| Platform Size (m) | 0.62×0.87 |
| Overall Dimension (A×B×C) (m) | 2.53×1.0×0.99 |
| Turret Rotation | 345° |
| Jib Movement | 130° |
| Wheelbase (D) (m) | 1.22 |
| Drive Tyres (mm) | Φ381×127 |
| Travel Speed (Stowed/Raised) (km/h) | 4.5/0.5 |
| Up/Down Speed (sec) | 42/38 |
| Weight (kg) | 2950 |
